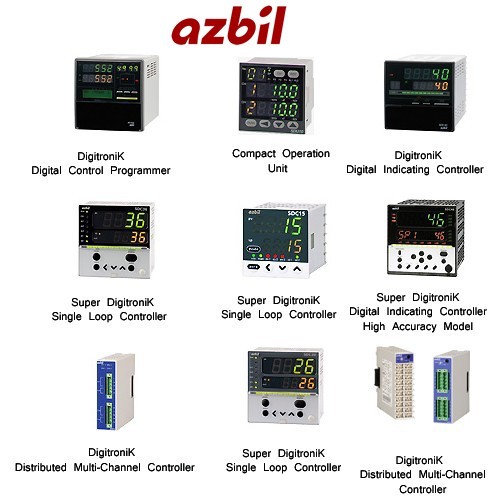

yamatake digital controller

Product Description

DigitroniK
Digital Control Programmer

The DCP552B Mark II is a two-channel advanced-function programmable controller (up to 49 program patterns), to which thermocouple, resistance temperature detector (RTD), DC voltage and DC current can be applied as input signals.
Features include 16 event outputs and 16 remote switch inputs.

Compact Operation Unit

The SDU10 is a compact operation display unit for the Modular Controller DMC10.
The SDU10 can be used as a monitor/operation device especially for on-site use in addition to use as a communications device with a personal computer, touch panel or other host device.
A "recipe" function enables DMC setup parameters (SP, P, I, D, etc.) that differ according to product lot to be stored internally on the SDU10 so that they can be batch changed by key operation, external switch input or remote communications.

DigitroniK
Digital Indicating Controller

The SDC40B is a single loop digital indicating controller used for controlling temperature, pressure, flow rate, liquid level, pH value, and many other industrial process variables.
A compact instrument with PID control and various auxiliary functions, the SDC40B offers advanced instrumentation with a high level of cost performance. PC software allows the user to design any combination of functions.

Super DigitroniK
Single Loop Controller

The DigitroniK SDC36 is a digital indicating controller featuring multiple input types and a PID control system using the new "RationaLOOP" and "Just-FiTTER" algorithms.
Up to two control outputs (depending on the exact model) can be used, which are selectable from relay, voltage pulse, continuous voltage, and current output.

Super DigitroniK
Digital Indicating Controller
High Accuracy Model

The DigitroniK SDC46R is the high-accuracy model of the SDC46 line of digital indicating controllers. The SDC46R supports 4-wire Pt RTD input, enabling high-accuracy and high-resolution temperature measurement. The SDC46R meets the requirements for HVAC and high-accuracy chiller control in semiconductor and flat panel display manufacturing equipment and utilities.

DigitroniK
Distributed Multi-Channel Controller

The DMC10E is an event output module that adds event outputs for DMC10 series modular controllers. One event output module can be added to a group of connected modules.

Super DigitroniK
Single Loop Controller

The DigitroniK SDC26 is a digital indicating controller featuring multiple input types and a PID control system using the new "RationaLOOP" and "Just-FiTTER" algorithms.
Up to two control outputs (depending on the exact model) can be used, which are selectable from relay, voltage pulse, and current output.

DigitroniK
Distributed Multi-Channel Controller

The DigitroniK DMC10S is a modular 2- or 4-channel compact digital controller. Input is full multiple, supporting thermocouple, RTD, DC voltage and DC current inputs.
Connectors are used to link modules, so wiring for communications and power is not required. "Quick-FITTER Control", a high-speed recovery control function is provided as standard. This function enables quick recovery of setpoint temperature and overshoot suppression at the occurrence of disturbances.
